KALAHARI
KALAHARI E-FAT BIKE FRAME.
Inspired by the toughness of the Kalahari Desert and respect for the San people.
Kalahari has been ride-tested off-road including beaches and sand dunes in South Africa.
A highly durable electric fat bike frame.
Ride a wide array of terrains from light off-road to beaches and even on road commuting.
GUIDELINE ON FRAME CHOICE:
Riders Height 1.70-1.80m ( 5.58 ~ 5.9 feet ) : 17”
Riders Height 1.80-1.90m ( 5.9 ~ 6.23 feet) : 19”
Riders Height 1.90m - 2.0m ( 6.23 ~ 6.56 feet) : 21"
Early Bird Special discount .
Pre-Order Yours now for Door-to-Door delivery in May 2024 🚚
Please View Compatibility Specs Below.
For each KALAHARI FRAME order we work with GREENPOP to plant a Tree.
Once Planted , a Greenpop certificate is emailed to you as proof of the action taken with your Tree GPS co-ordinates.
KALAHARI E-FAT BIKE FRAME.
Inspired by the toughness of the Kalahari Desert and respect for the San people.
Kalahari has been ride-tested off-road including beaches and sand dunes in South Africa.
A highly durable electric fat bike frame.
Ride a wide array of terrains from light off-road to beaches and even on road commuting.
GUIDELINE ON FRAME CHOICE:
Riders Height 1.70-1.80m ( 5.58 ~ 5.9 feet ) : 17”
Riders Height 1.80-1.90m ( 5.9 ~ 6.23 feet) : 19”
Riders Height 1.90m - 2.0m ( 6.23 ~ 6.56 feet) : 21"
Early Bird Special discount .
Pre-Order Yours now for Door-to-Door delivery in May 2024 🚚
Please View Compatibility Specs Below.
For each KALAHARI FRAME order we work with GREENPOP to plant a Tree.
Once Planted , a Greenpop certificate is emailed to you as proof of the action taken with your Tree GPS co-ordinates.
KALAHARI E-FAT BIKE FRAME.
Inspired by the toughness of the Kalahari Desert and respect for the San people.
Kalahari has been ride-tested off-road including beaches and sand dunes in South Africa.
A highly durable electric fat bike frame.
Ride a wide array of terrains from light off-road to beaches and even on road commuting.
GUIDELINE ON FRAME CHOICE:
Riders Height 1.70-1.80m ( 5.58 ~ 5.9 feet ) : 17”
Riders Height 1.80-1.90m ( 5.9 ~ 6.23 feet) : 19”
Riders Height 1.90m - 2.0m ( 6.23 ~ 6.56 feet) : 21"
Early Bird Special discount .
Pre-Order Yours now for Door-to-Door delivery in May 2024 🚚
Please View Compatibility Specs Below.
For each KALAHARI FRAME order we work with GREENPOP to plant a Tree.
Once Planted , a Greenpop certificate is emailed to you as proof of the action taken with your Tree GPS co-ordinates.
KALAHARI E-FAT BIKE FRAME.
Kalahari Frame Overview
Integrated Motor and Battery frame.
Suitable for both Wheel set sizes :26* | 27.5* (650B)
Tyre Widths : 26” and 27.5” - up to 5.0" wide.
Available Frame Sizes : Medium 17" , Large 19" , Extra large 21"
Material : Alloy 6061 | EU Frame safety standard : EN15194
Artwork: Gloss finish. Anti-rust treatment .
Frame Colour: Green/Blk/Wht ( as per images ) .
Motor-Frame Compatibility *
Bafang BBSHD mid drive motor systems.
Bafang M615 Motors : 750w and 1000w.
BB Compatibility: 100-120mm

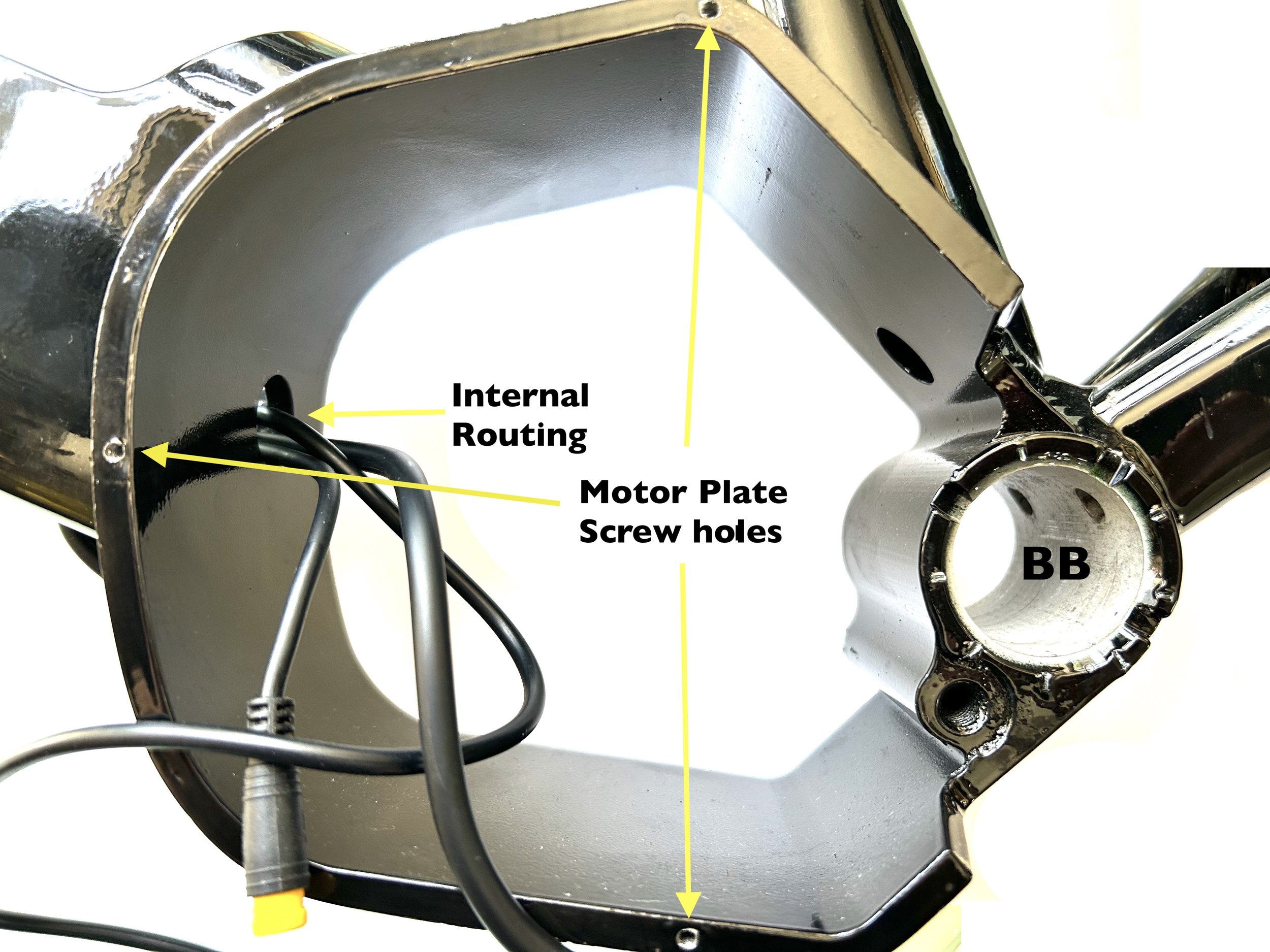

Motor is Protected inside the frame from outdoor elements - rain , mud ,direct sunlight and knocks from rocks or other objects during riding.
Motor Plates ( x1 for each side ) further protect against salt spray & water splash - ideal for coastal regions.
{ * If you do not have a Bafang motor and need help to get one please contact us )
Battery-Frame Compatibility: *
EEL li ion battery is automatically locked-In to the frame down-tube when inserting it.
Easy Removal : A key is used to unlock Eel.
Charge Eel on your e-bike or remove to charge.
Battery specs : Samsung Li ion 18-650 cells 35E 3500 mah 48v 17.5aH ( 840wH ).
Average Range : 100km on medium level PAS .
{ * Normally available in the U.S and EU .If you need to get an Eel battery please contact us )
Mechanical Component Compatibility *
Are you interested in installing your current bike parts on Kalahari frame ?
This may be done partly or completely depending on compatibility.
{ * If you need our help to see if some or all of your Mechanical parts are compatible for installing on Springbok or if you need to source components , please contact us )
Frame for Bafang Mid drive e-bike kit.
OTHER PARTS INCLUDED:
Frame for Bafang BBS Motor integration.
Bafang BBS Frame drop out.
Bafang Motor-Frame secure Lock plate.
Protective Motor plates covers for BBS Bafang Frames.
★★★★★
