eagle

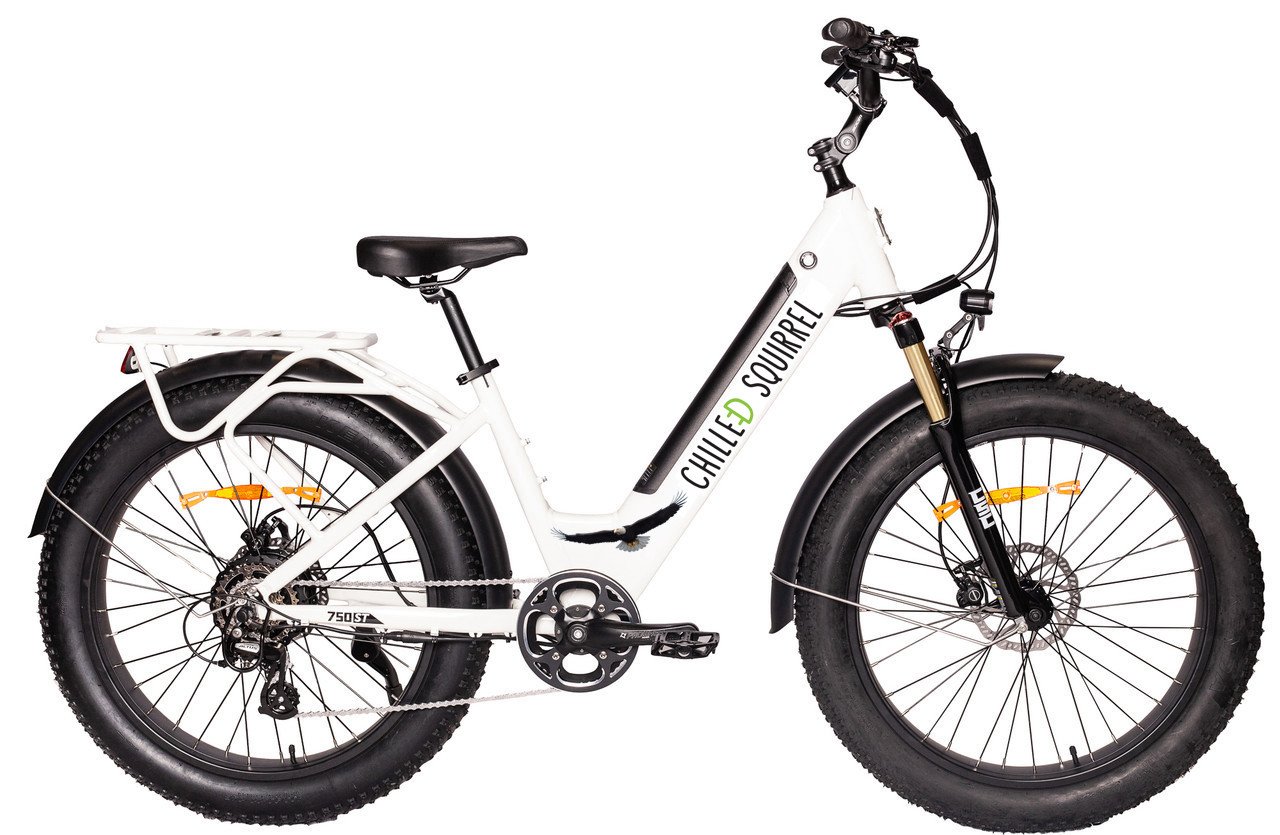

STEP-THRU ELECTRIC FAT BIKE.
Proudly Built and Customized in South Africa.
YOUR GET-READY-ELECTRIC-FAT-BIKE FOR SPRING 2025.
Comfort : Fat Tyres to soak up the bumps providing a more comfortable ride on any terrain.
Motor : Super low maintenance 750w 48v Rear geared hub drive.
Performance: The Motor and pedal assist helps you pace your ride based on your level of fitness.
Full control on how hard or relaxed type of ride is desired.
5 levels of Power Assist : Eco ; Tour ; Sport ; Sport + ; Boost
Terrain : Trails , Beaches, Dunes , Jeep tracks , On-road.

“Service couldn’t be better, technical knowledge and expertise applied excellent. All the staff very
friendly and going the extra mile to accommodate all issues.
Enjoying my bike on another planet!!!
Recommend them unconditionally.”
EAGLE SPECS.
-
Material : Alloy 6061
Available Sizes to choose from : Medium 17" (handlebar and seat post can be adjusted for shorter or taller)
•Artwork: High quality enamel gloss with anti-rust treatment .
Colour: Choose your own custom Colour.
Fork : 26" air shock
EU Frame safety standard-tested : EN15194
-
Bafang 750w Geared Hub drive.
Torque 85nM. 9 levels of Pedal assist (PAS). Average speed 35km/h.
Thumb Throttle for emergencies which Overrides Pedal assist.
Fully reprogrammable parameters - configure to your own riding preferences.This is one of the beauties of such a versatile e-bike kit : the ability to Re-programme the settings to configures one's own personal preferences. Riders own preferences for power, speed , pedal assist ( each of the 9 levels of PAS may be adjusted ) . Via a programming tool to suit each riders style and preferences.
-
EEL li ion battery is automatically locked-In to the frame down-tube when inserting it.
Removable when unlocking it with a key ( Duplicate keys are included).
Battery specs ;Samsung Li ion 18-650 cells 35E 3500 mah 48v 14aH ( 672wH ).
-
Air Shocks : 26* x 4.0" Mozo
Rims : Double wall strength 80mm wide Rims 26* x 4”
Hubs: Solon x32 holes Sealed bearings
Spokes: Stainless steel
Tyres : Kenda AV X 26* x 4.0" wide fat bike tyres
Seat post : Zoom
Saddle: Rockbros comfort .
Cassette: 7 speed Shimano 11-36T
Derailleur: Shimano 7 speed Altus
Gear Shifter : Shimano 7 speed with gear sensor
Brakes: Tektro Hydraulic Disc e-brake cut off safety
Rotors: Tektro Front wheel 180mm / Rear wheel 160mm.
Pedals: Wide platform.
Handlebar : MTB riser handlebar
Grips: Silicon comfort
Kickstand : Frame-integrated
LED Lights : Rear and Front Built-in.
Mudguard: Front
Carrier: Frame -integrated , carry up to 45kg on the rear.
* Please Note : We are continuously looking for ways to improve performance based on the availability of improved components and technologies therefore mechanical specs may change without prior notice with the aim of improving overall performance.
-
Medium 17” height 1.70~1.85m
Large 19” Height 1.80~1.95m

LET YOUR E-BIKE ADVENTURES BEGIN.
eagle 2025
Early Bird electric bike pre-orders streamlines the supply chain.
Delivering Superior E-biking Value and substantial Savings.

summary of what you get with eagle early bird pre-Order:
E-bike Satisfaction Guarantee.
A Risk-Free Electric bike investment for you.
Our Mission is to help you find an e-bike that suits you.
And for any reason you are not happy you get a Full refund.
tektro hydraulic e-brakes
Tektro HD-E500 Cut-off Safety brakes.
Dual piston Power integrated with Marula’s Bafang mid drive system to bring you safe and immediate stopping power.
#1
#2
alarm-lock-in-one. DONT TOUCH MY EBIKE!
Frighten Thieves with a loud alarm.
combinaton lock. DETER THIEVES.
Tough Cable Combination Lock.
#3
Smart Phone Handlebar holder.
Riding Convenience.
Charge your device while you ride via your LCD display.
Also Great for GPS Navigation.
#4
LOW MAINTENANCE.
Reduce Wear and Tear. Avoid chain breaks.
EBIKE=SPECIFIC CHAIN LUBRICATION.
E-bike drive systems need to perform at high torque levels.
ebike chain wax helps make a smoother ride with less wear and tear.
#6
nano-tech zero CORROSION treatment.
Ensure your Ebike is Corrosion-free.
#5
giving back . leave a legacy
giving back . leave a legacy
At Chilled Squirrel we believe in giving back and helping to restore our environment. Each time we build an e-bike or convert a bike to an e-bike , GREENPOP plants a tree for You !
A certificate thanking each person for their contribution to the environment is provided by Greenpop along with the Tree planting GPS for your tree.
Greenpop is an award-winning registered non-profit organisation headquartered in Cape Town, South Africa.
FRAME
WITHIN 3 DAYS OF RECEIVING.
BATTERY
questions ABOUT eagle E-FAT BIKE?
We are here to help. Drop us a Line.
